Brand Name : LINO
Model Number : GM48P
Certification : ROHS
Place of Origin : ZHEJIANGNINGBO
MOQ : 1K
Price : The price ranges from 15 to 30 RMB per unit. The specific model requirements vary
Payment Terms : T/T
Supply Ability : 100,000 units per month
Delivery Time : 30work days
Packaging Details : Carton with pallet
Voltage : 6VDC,12VDC,24VDC
Direction of rotation : CW, CCW
Motor type : RF520,RF500,RS365,RS385 DC MOTOR
Shaft : Customizable
DC GEAR MOTOR GM48P
| Products' type: | DC geared motor |
|
| Model: | GM48P | |
| Sort: | Pear shape DC geared motor | |
| Typical applications: | Coffee machine, communications-equipment, ACU-RITE,induced garbage can, electronic lock, optical equipment, medical instrumentation, office equipment, household appliances,etc… | |
| Weight | 110g (approx) |
| MODEL | VOLTAGE | AT NO LOAD | AT MAXIMUM EFFICIENCY | AT STALL | ||||||
| SPEED | CURRENT | SPEED | CURRENT | TORQUE | TORQUE | CURRENT | ||||
| VDC | RPM | A | RPM | A | mN.m | kg.cm | mN.m | kg.cm | A | |
| GM48P600-370 | 24 | 6 | 0.015 | 4.57 | 0.048 | 1029 | 10.500 | 4312 | 44.000 | 0.153 |
| Base motor option | RS360,RS365,RF370,RS380,RS385,RS390,RS395,RF500,RF520 | |||||||||
| Gear ratio option | a:12.5,15,25,41.7(125/3),83.3(244/3),100,164.2,166.67(500/3), 246.3,308, 450, 985, 1846.875; b:34.6, 128.6, 400, 500, 600, 750, 2400, 4500 | |||||||||
| Note | The specifications and output shaft can be changed as customer's request. | |||||||||
| Packing detail | Carton, Size: 38X35.5X34CM;100pcs/carton; G.W:12Kg. | |||||||||


|
|

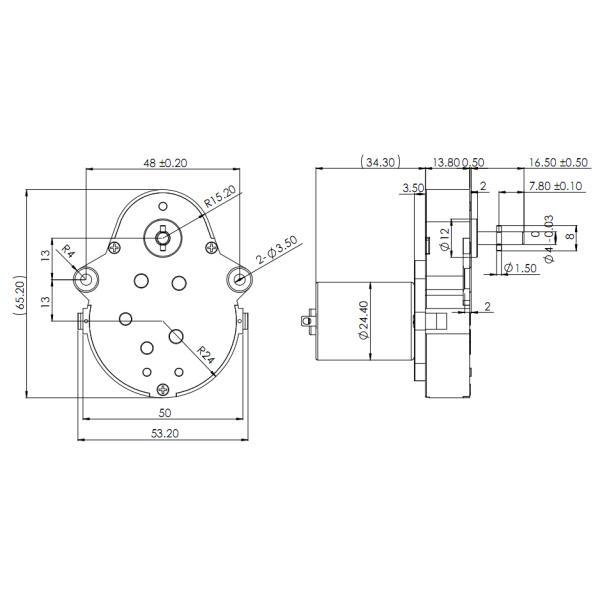

110g Tear Shape Gear Motor Pear Shape Dc Geared Motor 6RPM GM48P Images |
